What you will achieve
- Open and move the floating table.
- Filter pipes and compare columns in one view.
Step-by-step tutorial

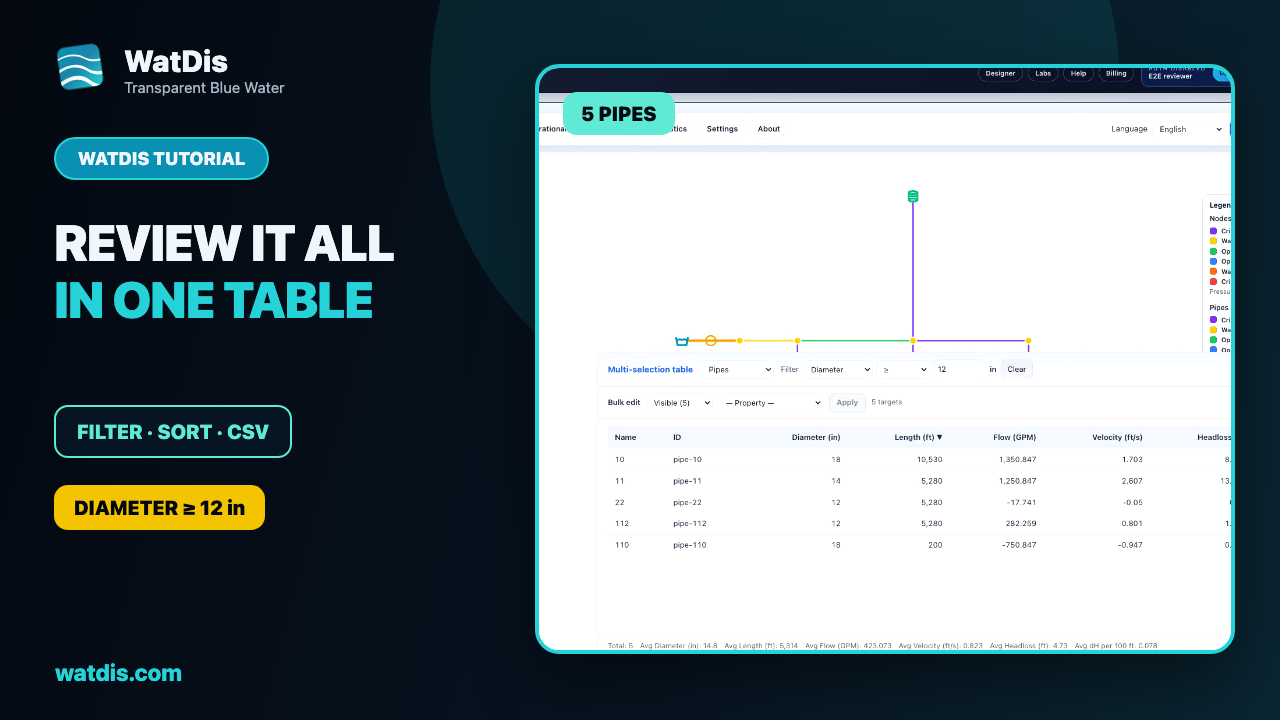

How to review a model with the dynamic table
Open the floating table, filter pipes, sort results, and compare properties in one view.
You can also follow the written stepsThe written steps and explanations in this chapter describe the workflow. The YouTube player loads only when you select Watch tutorial.
Before you start
- Calculate the model so results are available.
- Decide which element type and condition you need to review.
01
Open the table and choose an element type
Open the multi-selection table and choose nodes, pipes, or another available category. Move and resize it to keep the network visible.
- The top selector defines which rows appear.
- Units are part of each quantity header.
02
Build a readable filter
Choose the property, operator, and value in that order. For example: Diameter, greater than or equal to, 12 inches.
- Check the operator before interpreting the value.
- Clear removes the filter and restores the previous set.
03
Sort and compare results
Sort a column and review visible values with totals and averages. Select a row to return to the corresponding model element.
Do it in WatDis
- Filter pipes by diameter.
- Sort flow or velocity.
- Move or resize the table and return to a selected element.
Common mistakes
Reading only the filter number
Read property, operator, and value as one condition.
Comparing different units
Check the header unit before comparing models or columns.
